Roof profiles

Roofing & Sheetmetal Centre supply a range of roof sheet profiles to suit your project. We are a registered reseller of products including Stramit, Lysaght and Ampelite Australia, including the ever popular roof profiles below.

Turnaround time for orders in most cases is under 48 hours.

Get in touch with us if you would like to chat about your options, or would like to place an order.

Get in touch

Stramit® Corrugated Roof and Wall Cladding

Base Material Thickness (mm): 0.42, 0.48, 0.60
Finish: COLORBOND® , ZINCALUME®, Galvanised

  • Lightweight and easy to handle
  • Cost-effective to use and quick to install
  • 5 degree minimum roof pitch to suit most traditional applications
  • Uses conventional through-fixed screws
  • Available in an extensive range of colours

CUSTOM ORB®

The original Australian corrugated roof sheeting and wall cladding ideal for modern and traditional architecture in residential and commercial applications.

Finish: COLORBOND® , ZINCALUME®

  • A lightweight yet strong roofing and walling material
  • Versatile – Can be laid flat or sprung curved
  • Nominal cover width: 762mm
  • Minimum roof slope: 5°

Stramit Monoclad® Roof and Wall Cladding

Base Material Thickness (mm): 0.42, 0.48
Finish: COLORBOND® , ZINCALUME®

  • 29mm ribs provide excellent spanning and water-carrying capacity
  • Compatible Stramit Monolap® lap joint system allows for single plane, long run roofs
  • Suitable for 2 degree minimum roof pitch
  • Some system and span combinations certified to FM Global approval standard FM4471

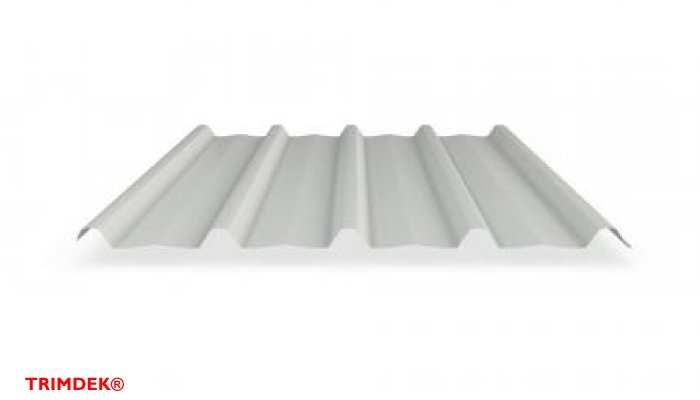

TRIMDEK®

Versatile roof and wall cladding featuring bold, trapezoidal ribs and subtle fluting in the pans. Ideal for commercial, industrial and residential buildings.

  • Long spanning cladding permitting wide support spacing
  • Can be used with TRIM-KLIP™ end and expansion joint system
  • Nominal cover width: 762mm
  • Minimum roof slope: 2°

Stramit Speed Deck Ultra® Concealed Fixed Decking

Base Material Thickness (mm): 0.42, 0.48
Finish: COLORBOND® , ZINCALUME®

  • Outstanding wind load resistance and water-carrying capacity
  • Suitable for roof pitches as low as 1 degree
  • Compatible Stramit Farlap® roof lap joint system gives a multiple sheet option for long length concealed fixed roofs
  • Full length clips to correctly locate ribs and compress insulation
  • Some system and span combinations certified to FM Global approval standard FM4471
  • Automatic bird proofing reduces need for extra components
  • Australian design award winner

KLIP-LOK 700 HI-STRENGTH®

An advancement of the original concealed fix roof cladding with bold ribs making a strong visual statement rising from flat pans. It is a superior product which has earned FM Global approval.

  • Concealed fixed offering supreme watertightness
  • Onsite manufacturing available via mobile roll forming capability
  • Can be used with LOK-KLIP® end and expansion joint system
  • Nominal cover width: 700mm
  • Minimum roof slope: 1° (subject to design provisions being met)

Stramit Longspan® Roof and Wall Cladding

Base Material Thickness (mm): 0.42, 0.48
Finish: COLORBOND® , ZINCALUME®, Galvanised

  • Cost-effective to use and easy to install
  • Architectural flexibility accommodates curved roofs
  • Suits roof pitches as low as 3 degrees (2 degrees is sufficient for Class 1 and 10 buildings)
  • Variable fixing screw patterns give design flexibility
  • Suitable for wall cladding

SPANDEK®

A modern, simple square-corrugated roofing and walling cladding that is strong, impact resistant and economical – ideal for both commercial and residential applications.

  • Highly serviceable roofing and walling cladding
  • Bold ribs offer high strength and high water carrying capacity
  • Nominal cover width: 700mm
  • Minimum roof slope: 2°*

*For roof slopes down to 2° a number of provisions and details will need to be adhered to.

We can help you find the right roofing profile for your needs. Get in touch and we’ll explore the options available to you through our supplier network.

Email: sales@rscentre.com.au
Phone: 9791 5355
